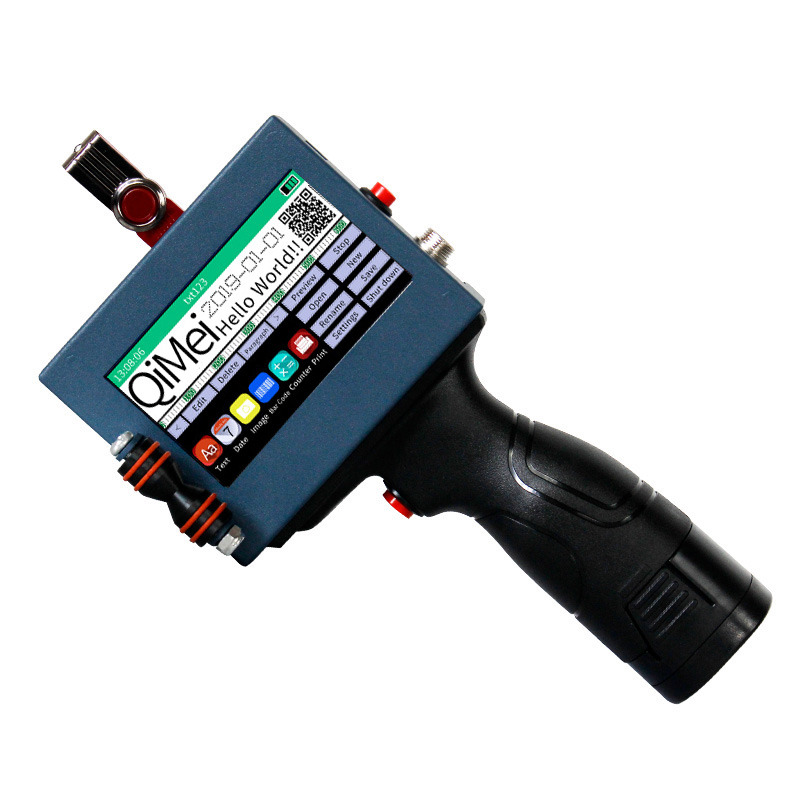

Model  | QM-630  | |
Dimension  | 130*128*242mm  | |
Net weight  | 1.10kg  | |
Printing direction  | adjusted within 360 degree, meet all kinds of production needs  | |
Character type  | high-definition printing character, dot matrix font, Simplified, Traditional Chinese and English  | |
Print Features  | ||
Function  | Handheld print and On line printing(Need Sensor extra)  | |
Printing pictures  | Pictures(BMP Monochrome single bitmap format)can be uploaded through USB disk  | |
Printing accuracy  | 300DPI 400DPI 600DPI  | |
Printing height  | 2mm-12.7mm  | |
Print code  | bar code, QR Code  | |
Printing distance  | 1-10mm Mechanical Adjustment (the best distance between the nozzle and printed object is 2-5mm)  | |
Print serial number  | 0~9  | |
Automatic print  | date, time, batch number shift and serial number, etc  | |
Storage  | external USB save the information transfer in a free way  | |
Message length  | 2000 characters for each message, no limitation on length  | |
Printing speed  | 70m/min  | |
Ink type  | Quick-dry environmental ink, water-based ink and oily ink  | |
Ink color  | black, white, red, blue, yellow, green, invisible  | |
Ink volume  | 42ml(usually can print 800,000 characters)  | |
Physical Features  | ||
External interface  | USB,Photoelectric interface, can directly insert a USB disk to upload information  | |
Voltage  | DC16.8V lithium battery, print continuously more than 10 hours and 20 hours standby  | |
Control panel  | touch-screen (can connect wireless mouse)  | |
Power consumption  | the average power consumption is lower than 5W  | |
Working environment  | Temperature:0 - 38 degree; Humidity: 10% - 80%  | |
Printing material  | board, carton, stone, pipe, cable, metal, plastic product, electronic, the fiber board, light steel keel, aluminum fo  | |
