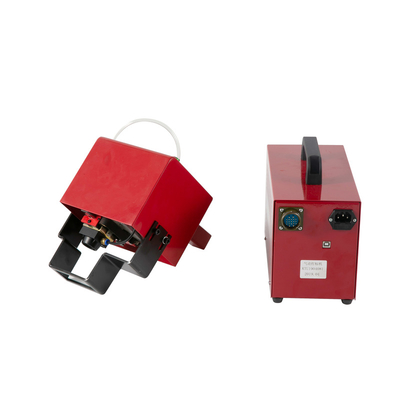

120*40/50*20 And Other Vehicle Chassis Number Dot Pin Pneumatic Marking Machine For Hand Held Portable Metal

1 Set
MOQ
120*40/50*20 And Other Vehicle Chassis Number Dot Pin Pneumatic Marking Machine For Hand Held Portable Metal
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Condition: New
Machine Type: dot peen marking machine
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Motor
Warranty: 1 year
Key Selling Points: Easy to Operate
Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Farms, Restaurant, Retail, Construction works , Energy & Mining, Advertising Company
Showroom Location: None
Engraving Speed: 30~40mm/s
Feeding Height: 0~300mm
Application: 120*40/50*20 and other
After Warranty Service: Video technical support, Online support
Local Service Location: None
Сертификация: CE
Weight: 10.8kg
Основная информация
Сертификация: CE
Оплата и доставка Условия
Packaging Details: standard export wooden case
Характер продукции
Specification
Model
KT-PH01
KT-PH02
KT-PH03
KT-PH04
Standard Marking Area
150mm X 50mm
120mm x 40mm
80mm x 25mm
50mm x 25mm
Base support
frame and electromagnetic basement
frame and electromagnetic basement
frame window basement
frame window basement
Marking speed
30mm~40mm/s
30mm~40mm/s
30mm~40mm/s
30mm~40mm/s
Impact Frequency
300times/s
300times/s
300times/s
300times/s
Repeated Accuracy
0.001mm
0.001mm
0.001mm
0.001mm
Marking Depth
0.1mm~2mm(depends on material)
0.1mm~2mm(depends on material)
0.1mm~2mm(depends on material)
0.1mm~2mm(depends on material)
Power Supply
AC 220V 50Hz or AC110V 60Hz
AC 220V 50Hz or AC110V 60Hz
AC 220V 50Hz or AC110V 60Hz
AC 220V 50Hz or AC110V 60Hz
Air Power Request
0.2Mpa~0.6Mpa
0.2Mpa~0.6Mpa
0.2Mpa~0.6Mpa
0.2Mpa~0.6Mpa
Humidity
0~90%(Non-condensing)
0~90%(Non-condensing)
0~90%(Non-condensing)
0~90%(Non-condensing)
Temperature
From 0 to 40 Centigrade Degree
From 0 to 40 Centigrade Degree
From 0 to 40 Centigrade Degree
From 0 to 40 Centigrade Degree
Making content
English characters ,number,all kinds of graphic,logo,dot matrix 2D codes,Barcode,Serial Number,circle letter and etc.
Software Compatible
Windows 98/XP/7 32 bit (KT-PH series need to connect to PC)
Product Description
Application
Recommend Products
Why Choose Us
FAQ
Q: I am not sure if this machine can work on my product or not, how do I choose? A: We will help you choose the suitable machine and give you solution, you can tell us the material of product, shape of workpiece, marking position, marking content size, and marking depth requirement.   Q: Is this machine easy to operate, what should I do if I don't know how to use it? A: We send installation and operation manual with machine, operation video, online training via Skype, Wechat, Whatsapp, phone conversation etc. are available. Staff training in our factory is free of charge, if needed, we can send our engineer overseas for training.   Q: If machine is out of order, what shall I do? A: We provide one year warranty for machine, two years warranty for laser generator.  If find problem, please contact us, we will reply you within 24 hours and help you find out problem then figure it out. We provide lifelong maintenance and replacement parts.   Q: What are the interface language options of marking software? A: The marking software interface language options are English, Korean, Japanese, Chinese simplified, Chinese traditional.    Q: Will the package be strong enough because it might be multi-way transportation. A: We have three layers, for the inner layer, the machine is wrapped with waterproof shrink film. The outside layer is strong wooden case free of fumigation. Between these two layers, we will fill EPE foam, bubble bag, carboard and so on to avoid the machine damage by shaking.     Q: What is the delivery time? A: Commonly the lead time is 5 working days after receiving payment. For customized machines and large quantity order, the lead time will be longer. Q: What is the payment terms? A: We accept payment by TT, LC, Paypal, Western Union, Mastercard, VISA, Cash, Alibaba trade assurance etc.
